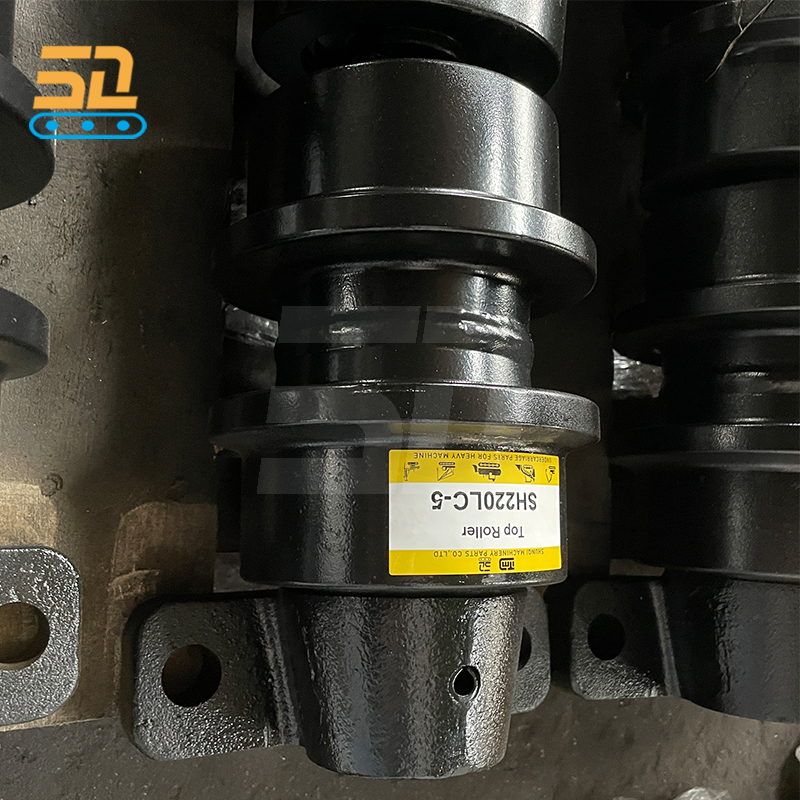

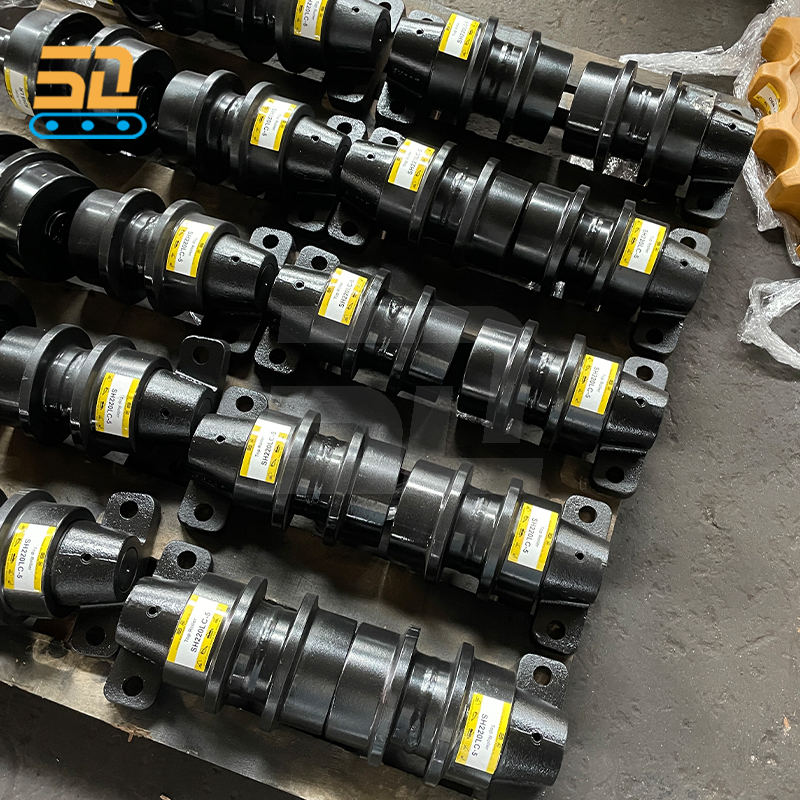

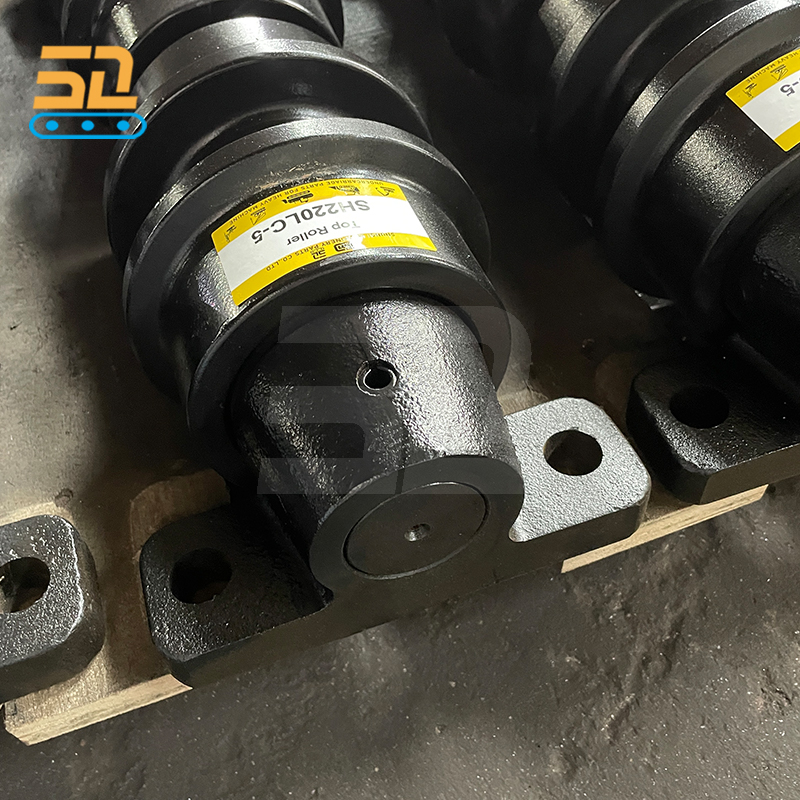

SH220LC-5 Top Roller
SH220LC-5 Top Roller
Sumitomo SH220 LC Top Roller — BERCO LK31 | Case CX210 · JCB JS220 Carrier Roller
Aftermarket top roller — also called carrier roller or upper roller — for the Sumitomo SH220 LC, crossing over to Case CX and JCB JS excavators in the 14–26 tonne class. Cross-references: BERCO LK31, Case 158774A1 / 161707A1, ITM C2612001M00, JCB 331/42441 / 2133610 / 2442200. Forged 50Mn steel, floating seal, 1-year warranty. Ships from Fujian, China.
Product Specifications
| Primary Machine | Sumitomo SH220 LC / SH220LC-5 |
|---|---|
| Part Type | Top Roller / Carrier Roller / Upper Roller |
| Cross References | BERCO LK31 Case 158774A1 · 161707A1 ITM C2612001M00 JCB 331/42441 · 2133610 · 2442200 |
| Compatible Brands | Sumitomo · Case · JCB |
| Material | 50Mn Steel (forged blank) |
| Technique | Forging + Medium-Frequency Induction Hardening |
| Place of Origin | Fujian, China |
| Price | Contact us for a quote |
| Warranty | 1-Year Free Replacement Warranty |
| Supply Brand | ShunQi Track |
| Shipment Port | Xiamen / Guangzhou |
| Fitment Check | By model, cross-reference number, photos or dimensions |
| WhatsApp — Get a Quote |
What Is a Top Roller?
Look at the upper run of the track chain on any crawler excavator — the roller sitting on top of the frame rail, holding the chain up between the sprocket and the idler, is the top roller. Most excavators in the 14–26 tonne class run one or two per side. Its job is to stop the slack section of track from dragging on the frame and to keep chain tension consistent as the machine travels.
The top roller takes a different kind of load than a bottom roller. It doesn't carry the machine's weight — instead it takes the slap and vibration of the returning chain, which means the floating seal and the bracket mounting points take the most punishment. A worn top roller usually shows up as a rhythmic clunking noise at travel speed, or visible oil weeping from the seal face.
Replacing it early matters: a seized top roller lets the chain ride directly on the frame rail, cutting into the rail and turning a simple swap into a frame repair job.
Cross-Reference — One Roller, Multiple Catalogue Numbers
Sumitomo, Case, JCB, BERCO and ITM each list this roller under their own system. Match any number below to confirm this part fits your machine.
| Supplier / Brand | Part Number(s) |
|---|---|
| BERCO | LK31 |
| CASE | 158774A1 · 161707A1 |
| ITM | C2612001M00 |
| JCB | 331/42441 · 2133610 · 2442200 |
Full Compatibility List — Sumitomo · Case · JCB
50+ models in the 14–26 tonne class. Find your machine below.
| Brand | Compatible Models |
|---|---|
| SUMITOMO | SH200 · SH210 · SH220 LC · SH240 · SH280 |
| CASE | 9010 · 9010B · 9013 · 9020 · 9020B (DAC0201001 UP) · 9030 · 9030B · 9030B LC · 9040B CX160 · CX160B · CX160C · CX180 CX210 · CX210B · CX210B LR · CX210B NLC · CX225 · CX225SR CX240 · CX240 LR · CX240B · CX240B LR |
| JCB | JS110 (697002–697055) · JS130 · JS130LC · JS140 JS150LC · JS160L · JS160NL · JS180L · JS180NLC JS190LC · JS190NLC JS200 1st Type (704763 UP) · JS200 2nd Type (705001 UP) JS200LC 1st Type (704763 UP) · JS200LC 2nd Type (705001 UP) JS210 LC (705001 UP) · JS220LC · JS220LR Long Reach · JS220N · JS220S JS240NLC 2nd Type · JS240S 2nd Type JS260LC 2nd Type · JS260NLC 2nd Type |
Before You Order
►Confirm your exact model — SH220 LC, Case CX160–CX240 series, or JCB JS110–JS260 series. Sub-model and serial number range matter.
►Locate your cross-reference — check the parts manual, the number stamped on the roller body, or your procurement system for BERCO, Case, ITM or JCB references.
►Count rollers per side — most machines in this class run 1–2 top rollers per side; confirm quantity before ordering.
►Check mounting bracket type — fixed mount or bolt-on bracket; send a photo if unsure.
►Number worn off? — A photo of the old roller next to the machine plate is enough for us to confirm the right part.
Frequently Asked Questions
What cross-references fit the Sumitomo SH220 LC top roller?
BERCO LK31, Case 158774A1 and 161707A1, ITM C2612001M00, JCB 331/42441, 2133610 and 2442200. All refer to the same top roller for the SH220 LC and compatible machines listed on this page.
Does this top roller fit Case CX210 and JCB JS220?
Yes. Case CX210, CX210B, CX210B LR, CX210B NLC and JCB JS220LC, JS220LR, JS220N, JS220S all use this roller. Full coverage runs from Case 9010 through CX240B LR and JCB JS110 through JS260NLC 2nd Type.
What is the difference between a top roller and a bottom roller?
Bottom rollers sit under the frame and carry the machine's weight — 7 to 9 per side on a 20-tonne excavator. Top rollers sit above the frame rail and support the returning slack section of the chain — typically 1 to 2 per side. Different parts, different dimensions, different mounting brackets. Do not interchange them.
Is this a genuine Sumitomo part?
No — aftermarket replacement from ShunQi Track / Quanzhou Shunqi Construction Machinery Parts Co., Ltd. Cross-reference numbers are used solely to confirm fitment. No affiliation with Sumitomo Heavy Industries, CNH Industrial (Case), JCB, Berco S.p.A. or ITM.
What does the warranty cover?
Seal failure and tread defects for one year from shipment. Send photos and machine hours and we will arrange a free replacement or credit.
How long does shipping take from Fujian, China?
FCL sea freight from Xiamen or Guangzhou: 7–15 days to most ports. LCL: 25–35 days. Urgent single-piece DHL or FedEx: 5–7 days door to door.
Last updated: July 17, 2026
Get a Quote — SH220 LC Top Roller
Send us the machine model, cross-reference number, quantity and destination port. Fitment confirmed and quote back the same business day.
