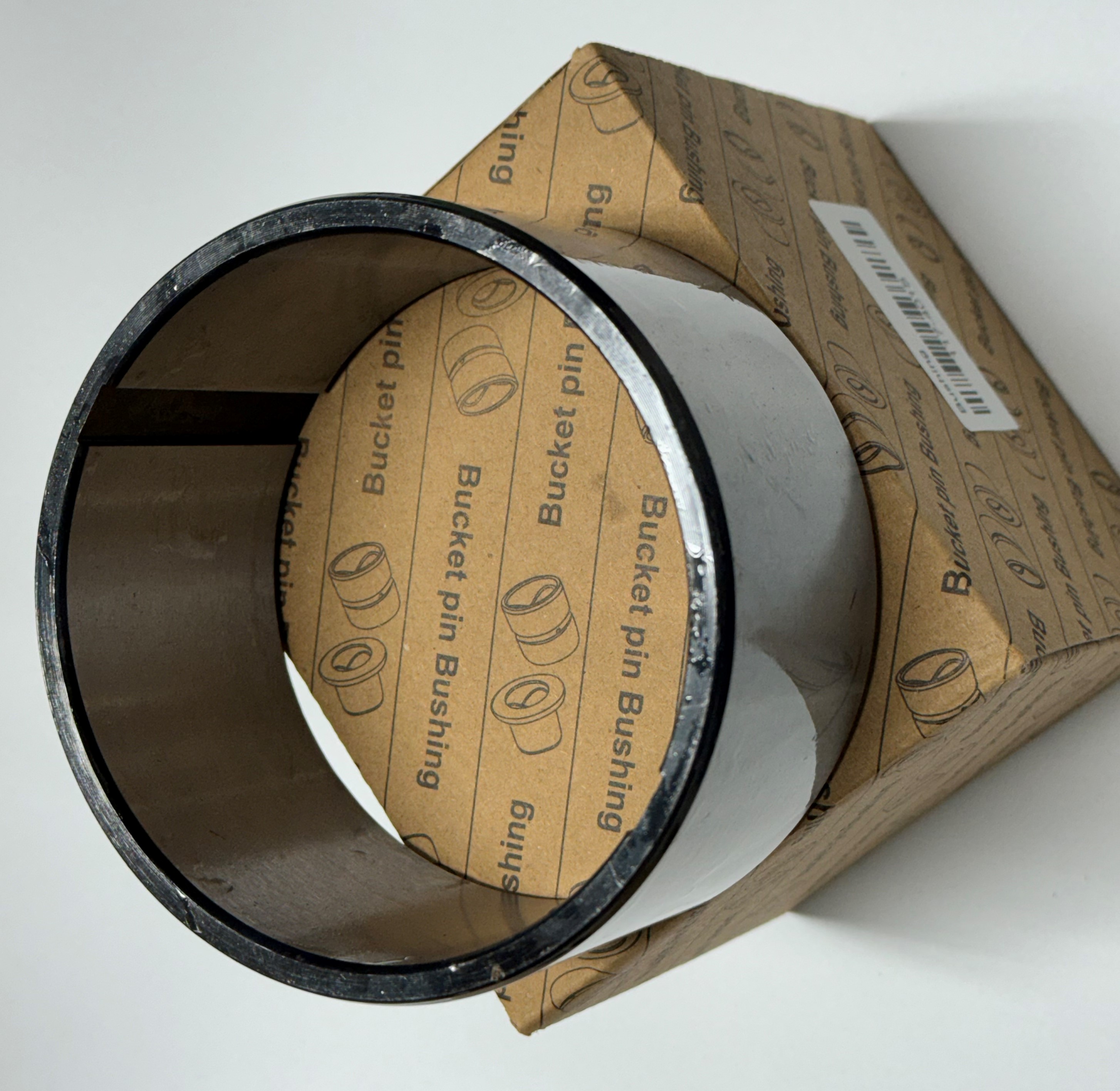

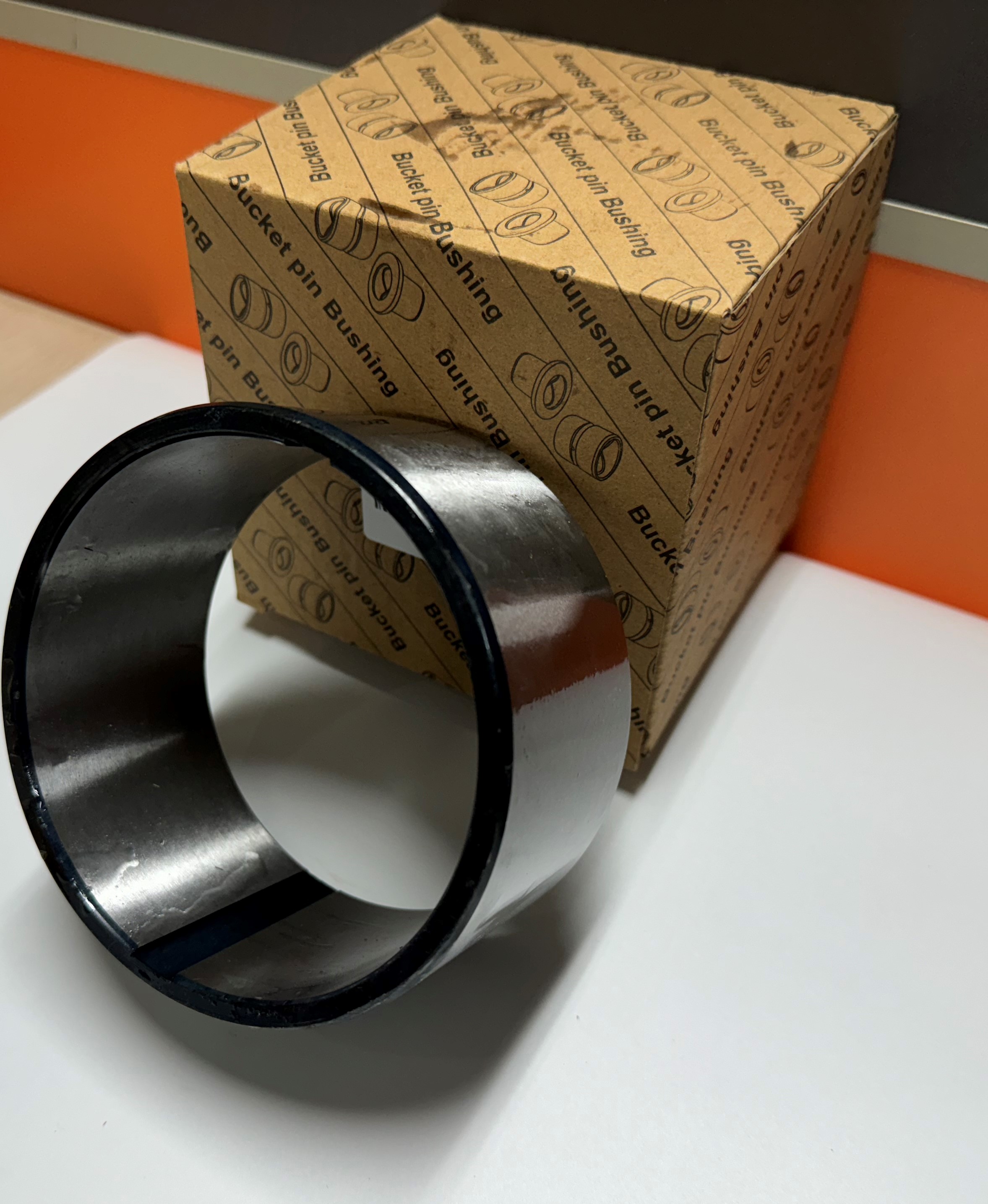

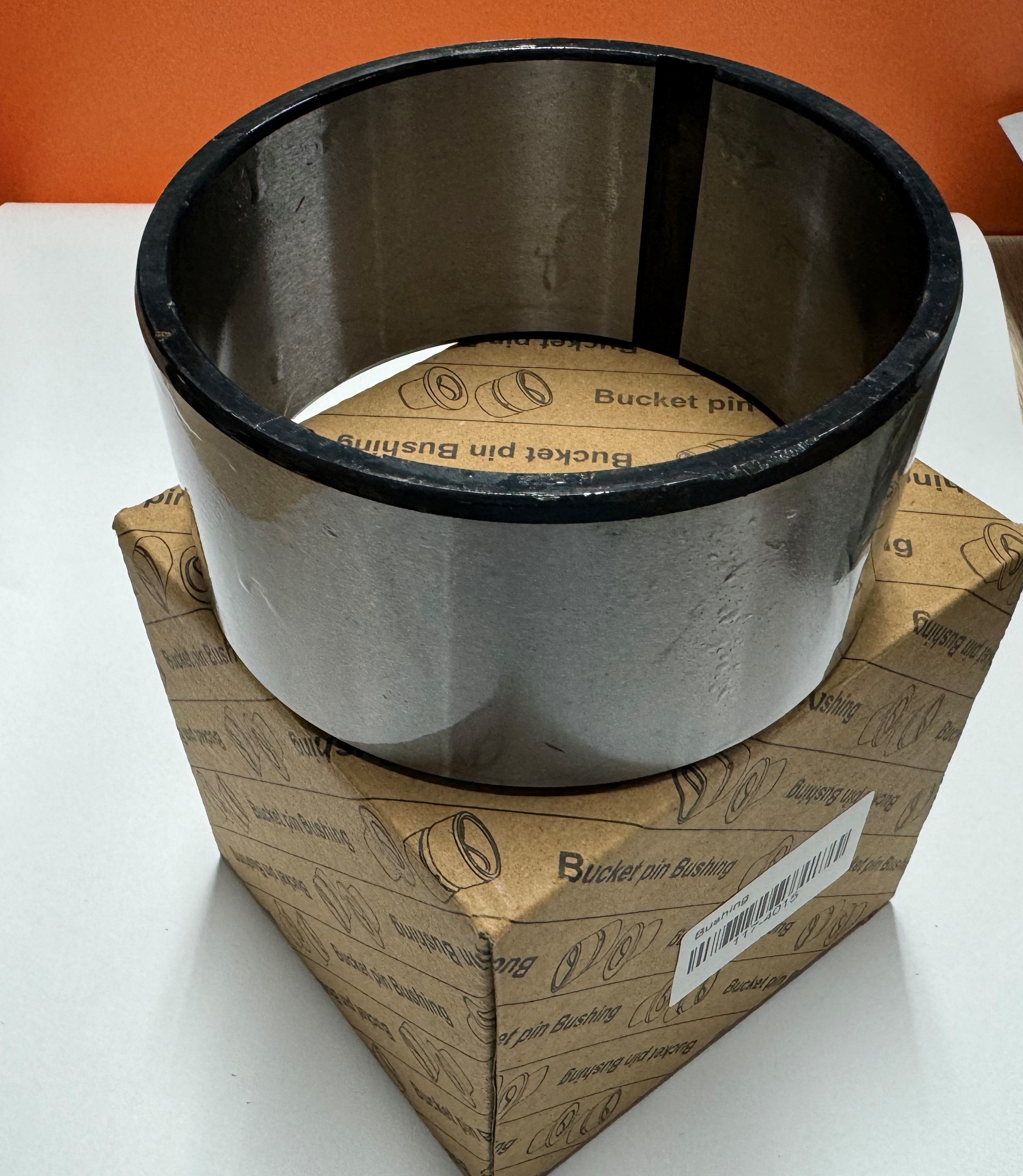

117-4015 Straight Sleeve Bearing for D9T, D9R and D9 GC Track-Type Tractor
The D9 series operates under load conditions that most machines never see — sustained push work, deep ripping in abrasive ground, and continuous hours that accumulate fast on undercarriage components. When a sleeve bearing in this platform needs replacing, dimensional accuracy and material consistency matter more than they do on lighter equipment. This P/M steel straight sleeve bearing is cross-referenced to Cat part 117-4015 and manufactured to match the original bore tolerances for D9T, D9R and D9 GC machines. It is the kind of component that rebuild shops source specifically because the D9 sees high rebuild frequency — and getting the bearing wrong means pulling the machine again far sooner than it should.
What Sets This Bearing Apart for D9 Applications
Compared to the D7 or D8 series, the D9 platform carries significantly more machine weight through its pivot and support positions. A bearing that passes a dimensional check but lacks adequate material density will show accelerated bore wear — typically within the first few hundred operating hours after a rebuild. Sintered powdered metal construction handles this by distributing contact stress more evenly across the bore surface and releasing retained lubricant gradually as the bearing heats up under load.
This bearing carries no grease hole and no cross holes, which removes one potential failure point from the assembly. If your position requires a lubrication port, this part is not the correct match — measure your old bearing and confirm the specification before ordering. For shops sourcing bulldozer parts for D9 rebuilds at volume, confirming the part number against measured dimensions is standard practice before committing to a batch order.
Technical Specifications — Part 117-4015
| Part Number | 117-4015 |
|---|---|
| Material | P/M steels (powdered metal) |
| Type | Straight sleeve |
| Inside Diameter | 4.02 in |
| Outside Diameter | 4.51 in |
| Overall Length | 2.3 in |
| Internal Groove | No grease hole |
| Lubrication | Oil infused (self-lubricating) |
| Condition | New aftermarket replacement |
Compatible Equipment
Cross-referenced for the following Caterpillar machines. Verify by part number or measured dimensions before purchase.
Track-Type Tractor
Who Orders Part 117-4015
Typical Buyers
Heavy equipment rebuild workshops
Undercarriage and final drive specialists
Parts distributors serving D9 operators
Mining and large-scale earthmoving fleets
Pipeline and land clearing contractors
Information Needed to Quote
Machine model and serial number
Part number 117-4015 or old bearing photo
Measured ID, OD and length if available
Required quantity
Destination port or country
Frequently Asked Questions
What machine does part number 117-4015 fit?
Part 117-4015 is cross-referenced for Caterpillar D9T, D9R and D9 GC track-type tractors. If you are unsure whether it fits your specific serial number range, send the machine details and the team will confirm.
What are the dimensions of the 117-4015 bearing?
Inside diameter 4.02 in, outside diameter 4.51 in, overall length 2.3 in. No grease hole, no cross holes and no external groove.
Does this bearing require grease during installation?
The powdered metal structure is oil infused and self-lubricating under normal operating conditions. No grease port is present. A light coat of assembly lubricant on the outer surface during press-fit installation is acceptable but not required.
Is part 117-4015 an OEM Caterpillar part?
No. This is an aftermarket replacement manufactured to match the original dimensions and material grade. It is not produced by or affiliated with Caterpillar Inc.
Can I order in bulk for a fleet rebuild program?
Yes. Send your quantity, machine models and destination and Shunqi will provide a volume price with lead time and export packaging details.
Trademark notice: Caterpillar, Cat, D9T, D9R and related model designations are referenced solely to indicate equipment compatibility. This is an aftermarket replacement part supplied by Quanzhou Shunqi Machinery Parts Co., Ltd. and is not an OEM product.
