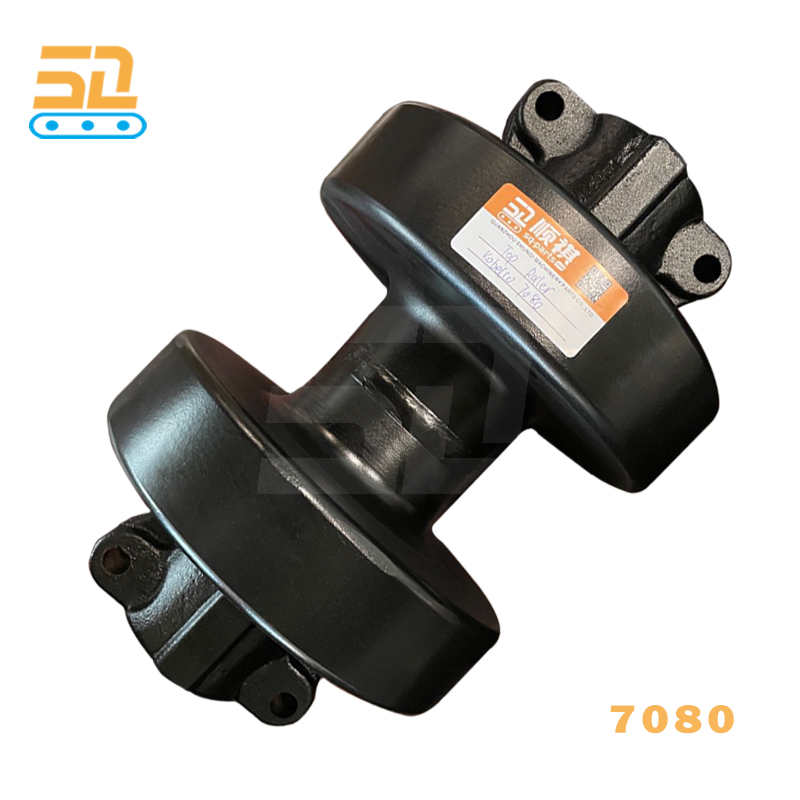

Kobelco CKE2500 Carrier Roller for Crawler Crane Undercarriage
Aftermarket Kobelco CKE2500 carrier roller (top roller / upper roller), 50Mn forged steel, HRC 52–58 tread hardness, dual-cone floating seals tested to 2.4 MPa. Fits CKE2500, CKE2500-1, CKE2500G, CKE2500-II. Fitment confirmed by machine model, photos, or dimensions before shipment.
Product Specifications
| Machine Model | Kobelco CKE2500, CKE2500-1, CKE2500G, CKE2500-II |
|---|---|
| Part Type | Carrier Roller / Top Roller / Upper Roller |
| Compatible Brand | Kobelco |
| Supply Brand | ShunQi Track / PartsCrane |
| Machine Type | Crawler Crane |
| Material | 50Mn high-strength forged alloy steel |
| Manufacturing Process | Precision casting + CNC turning + CNC grinding |
| Tread Hardness | HRC 52–58 (induction hardened) |
| Sealing | Dual-cone floating seals — 2.4 MPa water pressure tested + air tightness tested |
| Surface Treatment | Anti-rust paint — for ocean freight and outdoor storage |
| Product Group | Crawler Crane Undercarriage Parts |
| Shipment Port | Xiamen / Guangzhou |
| Fitment Check | By machine model, sub-variant, OEM number, photos, or dimensions |
About This Part
The carrier roller on a Kobelco CKE2500 sits above the crawler frame rail and supports the return run of the track chain between the front idler and the sprocket. On a 250-tonne crane doing repeated pick-and-carry cycles, the top roller takes constant lateral load every time the machine slews with the chain under tension.
50Mn forged steel gives higher tensile strength and impact toughness than plain carbon steel. The dual-cone floating seals are pressure-tested to 2.4 MPa on every unit — a failed seal means oil loss and accelerated bearing wear within days on a working machine. CNC turning and grinding hold the tread and shaft journal to tight tolerance; out-of-round tread puts a bounce in the chain at travel speed.
Construction and Key Features
50Mn forged steel body — higher tensile strength and impact toughness than plain carbon steel. Stays round under repeated load cycles.
CNC turning + CNC grinding — tread and shaft journal held to tight tolerance.
Dual-cone floating seals — 2.4 MPa water pressure + air tightness tested on every unit. Fails either test: reworked or scrapped.
Anti-rust paint — for ocean freight and yard storage. Scrape the mounting face clean before fitting.
Custom orders — brand marking, colour, dimensions available for volume distributors.
Compatible Sub-Variants — Kobelco CKE2500 Series
The CKE2500 line has four sub-variants. Send the full model designation from the machine plate before ordering — particularly if the machine has been repaired with non-standard parts at some point.
Kobelco CKE2500 series — carrier roller fitment confirmed for:
Customization Options
Brand labeling: Available under your own brand for distributor and OEM orders.
Surface color: Coating color adjustable on request.
Custom dimensions: Produced to drawing or physical sample.
Other Kobelco Crawler Crane Models — Components Available
ShunQi Track / PartsCrane supplies Kobelco crawler crane componentsacross the full range — from the BM and P&H series through to the CK, CKE and CKS lines. Each part is confirmed to the specific model before shipment.
Kobelco crawler crane models — undercarriage components available:
Packaging and Shipment

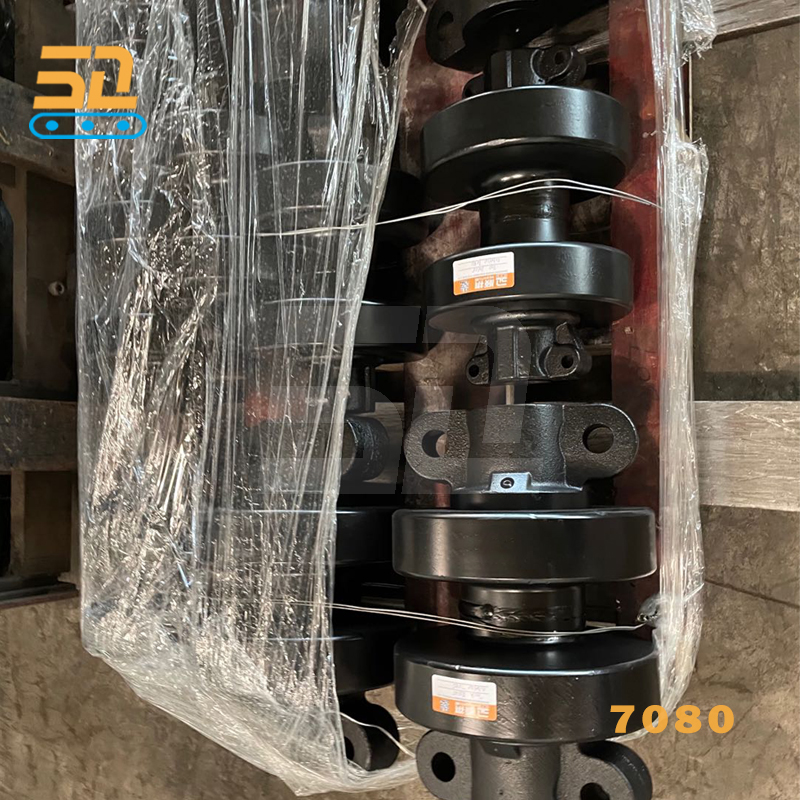

Each roller wrapped individually, packed in wooden export crates
Packing list and packing photos sent before shipment
Shipped from Xiamen or Guangzhou port
Full undercarriage sets consolidated in one shipment on request
Sea freight LCL or FCL, air freight, express — based on urgency
Lead time confirmed by model and quantity at order stage
Frequently Asked Questions
What is a carrier roller on a Kobelco CKE2500 crawler crane?
The carrier roller — also called top roller or upper roller — sits on top of the crawler frame and supports the upper run of the track chain between the front idler and the sprocket. Without it, the chain sags under its own weight and slaps the frame on every travel cycle.
How do I know when the CKE2500 carrier roller needs replacing?
Three things to check: tread surface gone flat or uneven; oil on the ground from a leaking seal face; roller not turning when you push the track chain through by hand. A seized carrier roller drags the chain instead of rolling under it.
Does the CKE2500-1 use the same carrier roller as the CKE2500G?
Dimensions are consistent across the CKE2500 series in our production records. Send the full sub-variant designation and a photo of the worn roller from both end faces — we check before quoting.
Is this a genuine Kobelco OEM part or aftermarket?
Aftermarket replacement only. Kobelco model names are used solely to identify machine fitment. Supplied by ShunQi Track / PartsCrane / Quanzhou Shunqi Construction Machinery Parts Co., Ltd.
Can you supply a full set of Kobelco CKE2500 undercarriage parts?
Yes. Track rollers, carrier rollers, front idlers, sprockets, track shoes and track chain — all checked against the CKE2500 model before shipment. One shipment for the full set saves on freight.
Can you make a carrier roller by sample or drawing?
Yes. Send the worn roller or a dimensional drawing — outer diameter, overall width, shaft diameter, flange type, material grade and quantity. We come back with feasibility, lead time and price.
Trademark notice: Kobelco, CKE2500 and related model designations are used solely to identify machine compatibility. Aftermarket replacement parts supplied by ShunQi Track / PartsCrane / Quanzhou Shunqi Construction Machinery Parts Co., Ltd. Not manufactured by or affiliated with Kobelco Cranes Co., Ltd.
Get Price for Kobelco CKE2500 Carrier Roller
Send model, photos of the worn roller, quantity and destination port. ShunQi Track / PartsCrane replies with fitment confirmation and price — usually within one business day.
